Footnote
18 Please make sure that the vehicle meets the 'Maximum Hub Height' and 'Inner Wheel Bevel' requirements listed below.

Photo Vehicle System Widening
Per Side
Part Num. Maximum
Hub Height
Inner Wheel Bevel

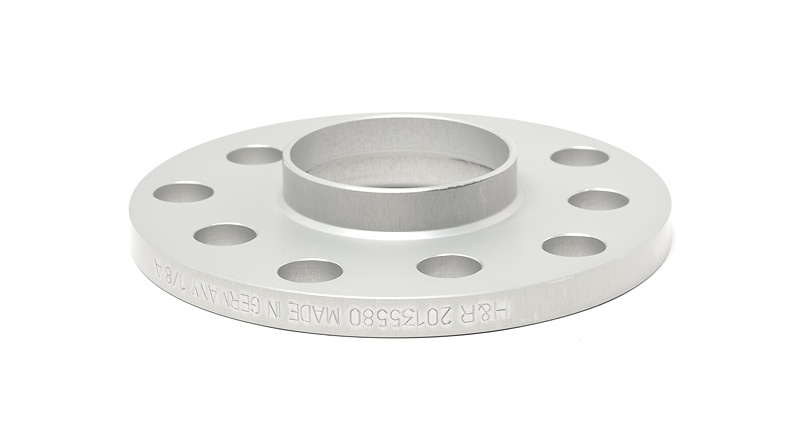

ALFA ROMEO DR / 10 20135580 10.50mm N/A

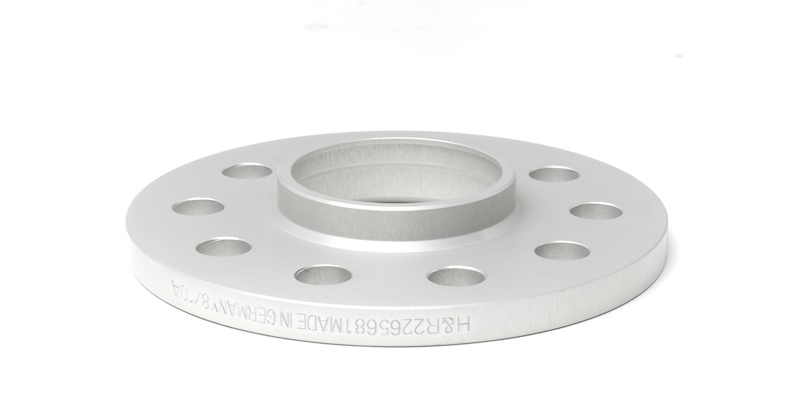

ASTON MARTIN DR / 11 2265681CR 20.00mm N/A

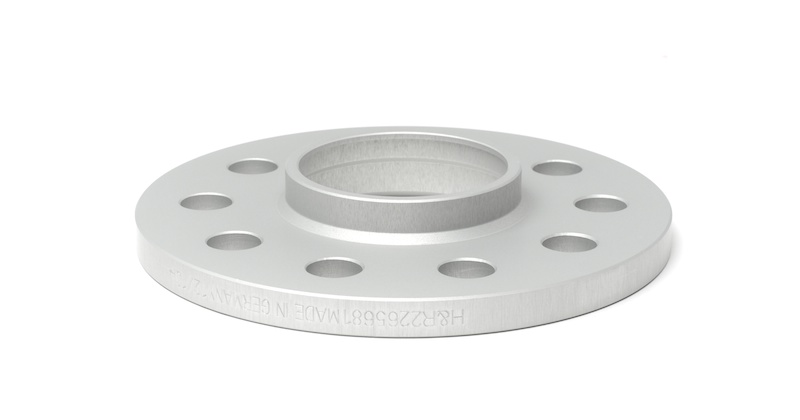

ASTON MARTIN DR / 11 2265681SW 20.00mm N/A

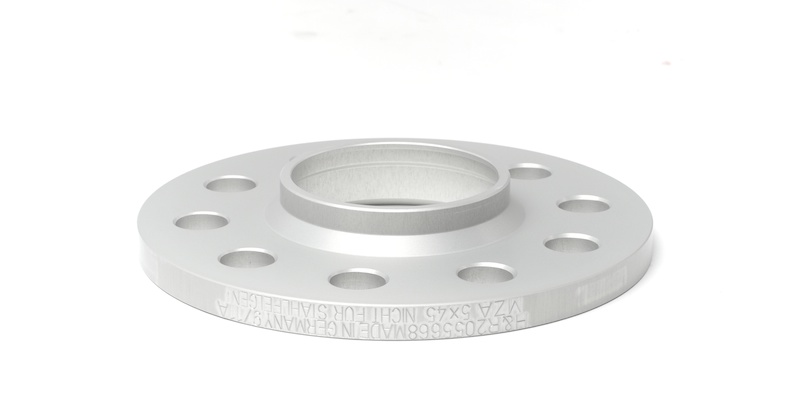

AUDI DR / 10 2055668 13.50mm 5.0 x 45 degrees

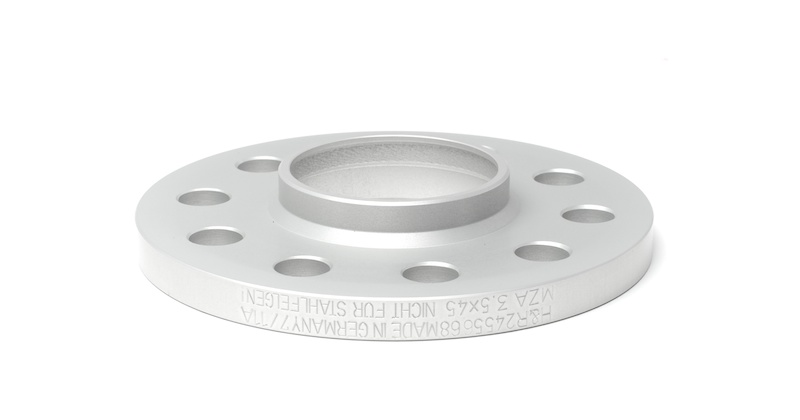

AUDI DR / 12 2455668 13.50mm 4.0 x 45 degrees

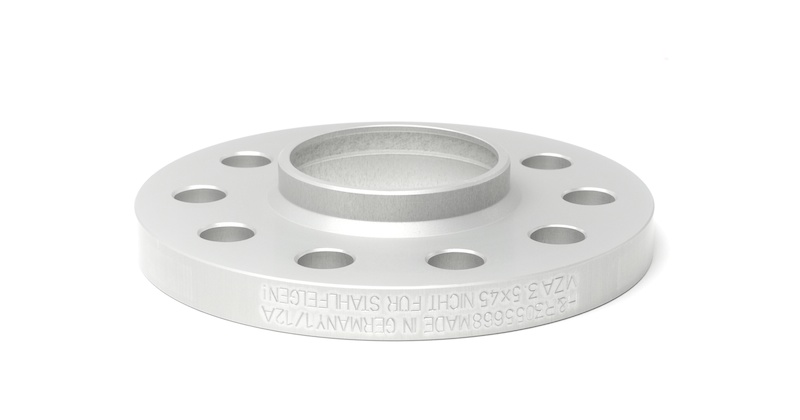

AUDI DR / 15 3055668 17.00mm 4.0 x 45 degrees

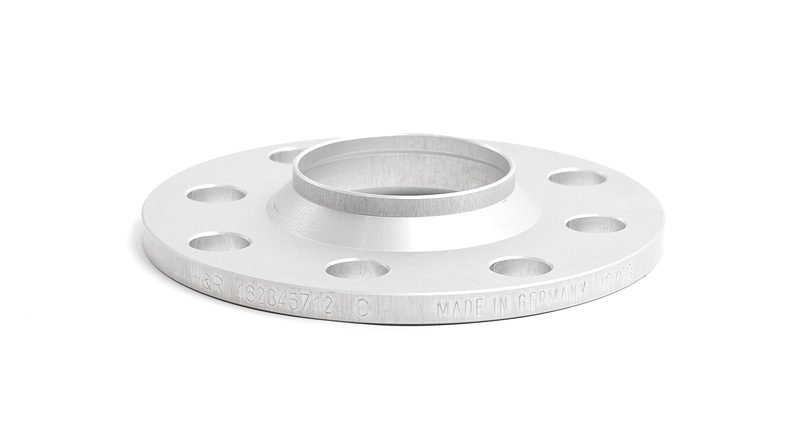

AUDI / VOLKSWAGEN DR / 8 162345712 14.00mm 7.0 x 45 degrees

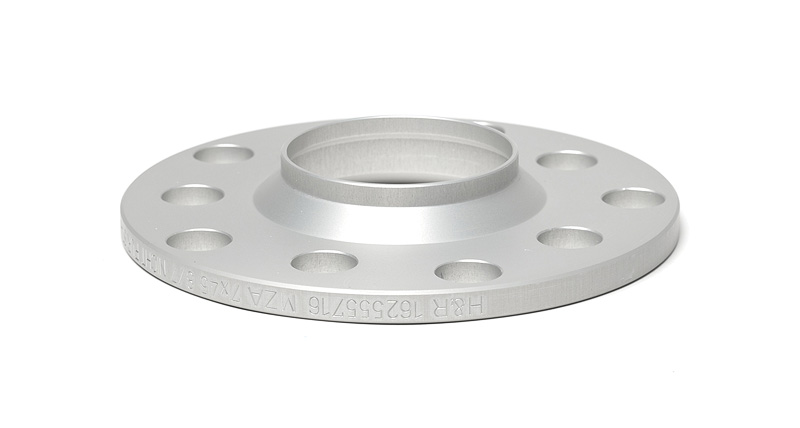

AUDI / VOLKSWAGEN DR / 8 162555716 14.00mm 7.0 x 45 degrees
AUDI / VOLKSWAGEN DR / 8 1655572 14.00mm 7.0 x 45 degrees

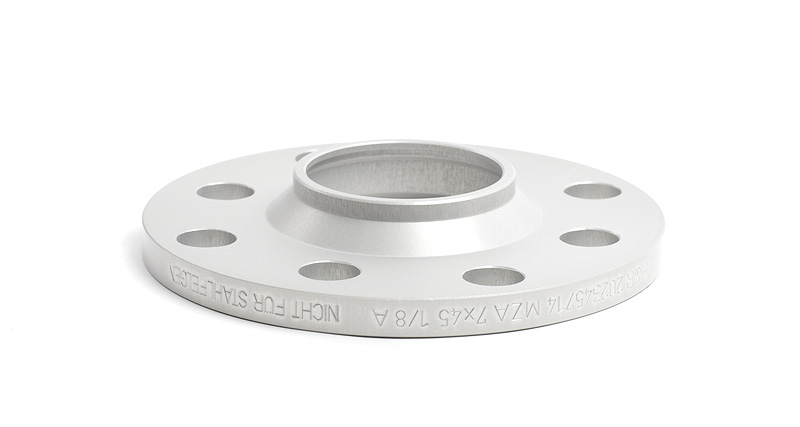

AUDI / VOLKSWAGEN DR / 10 202345714 16.00mm 7.0 x 45 degrees

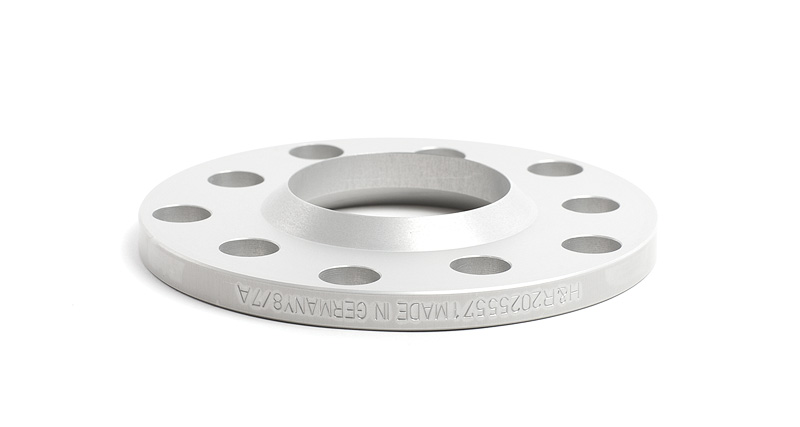

AUDI / VOLKSWAGEN DR / 10 20255571 N/A 7.0 x 45 degrees

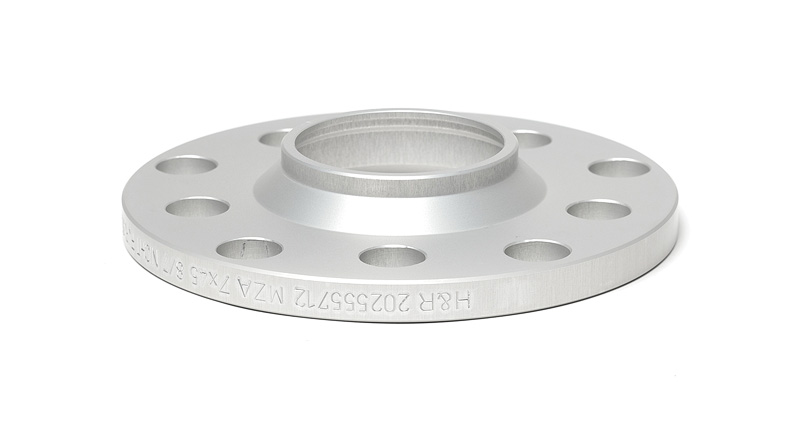

AUDI / VOLKSWAGEN DR / 10 202555712A 16.00mm 7.0 x 45 degrees

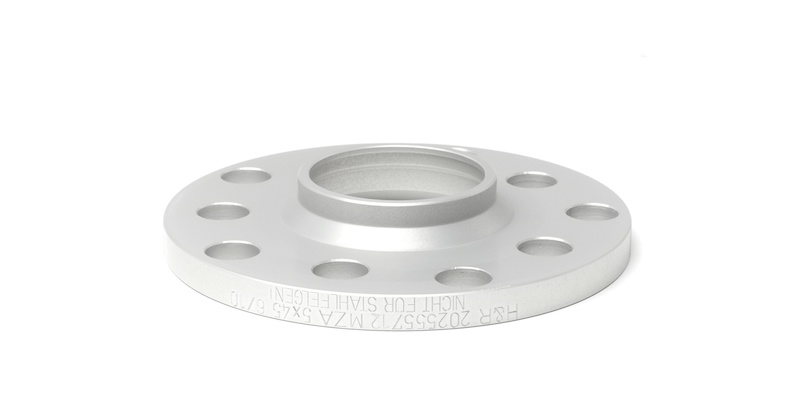

AUDI / VOLKSWAGEN DR / 10 202555712B 14.00mm 5.0 x 45 degrees

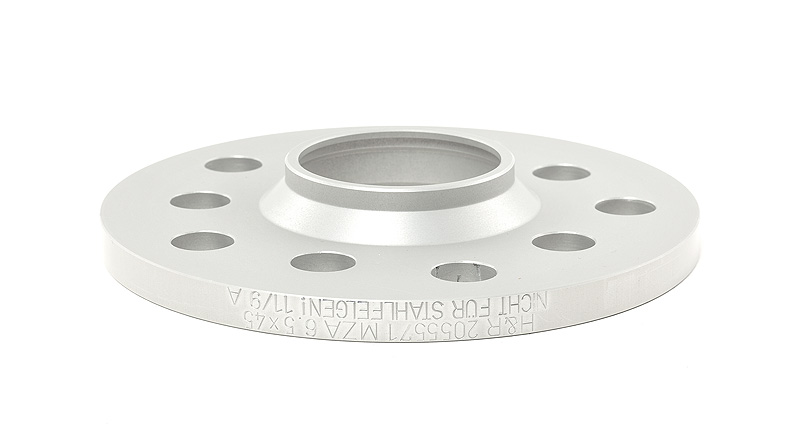

AUDI / VOLKSWAGEN DR / 10 2055571A 15.50mm 6.5 x 45 degrees

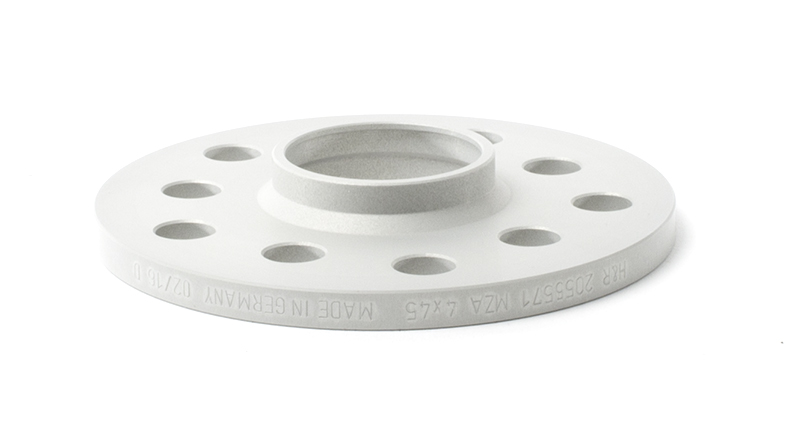

AUDI / VOLKSWAGEN DR / 10 2055571B 12.00mm 4.0 x 45 degrees

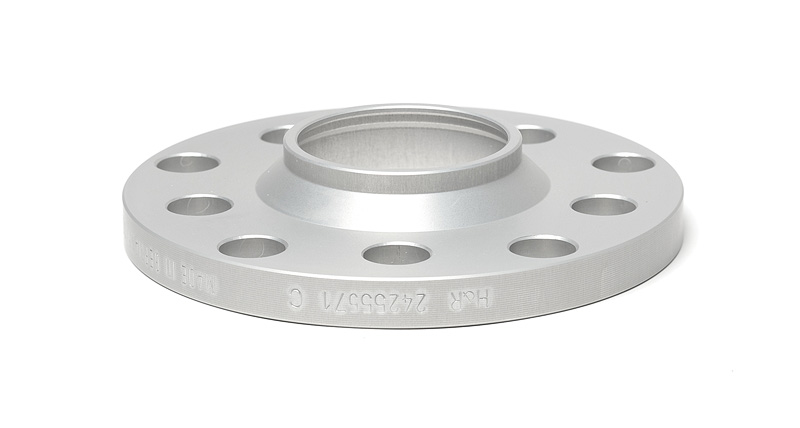

AUDI / VOLKSWAGEN DR / 12 24255571 15.00mm 5.0 x 45 degrees

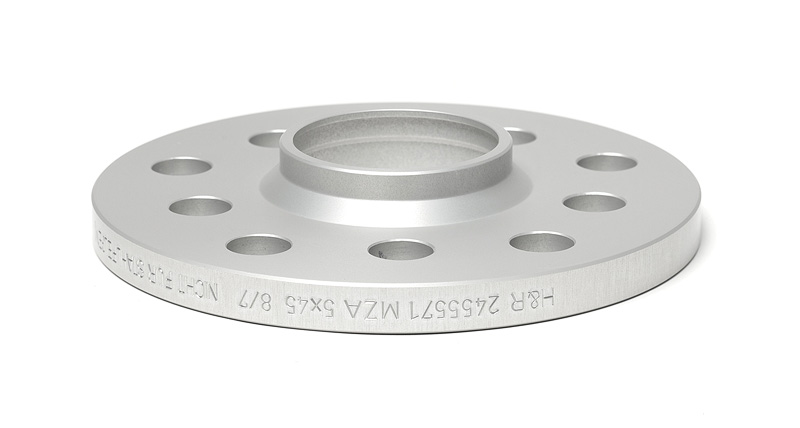

AUDI / VOLKSWAGEN DR / 12 2455571 15.00mm 5.0 x 45 degrees

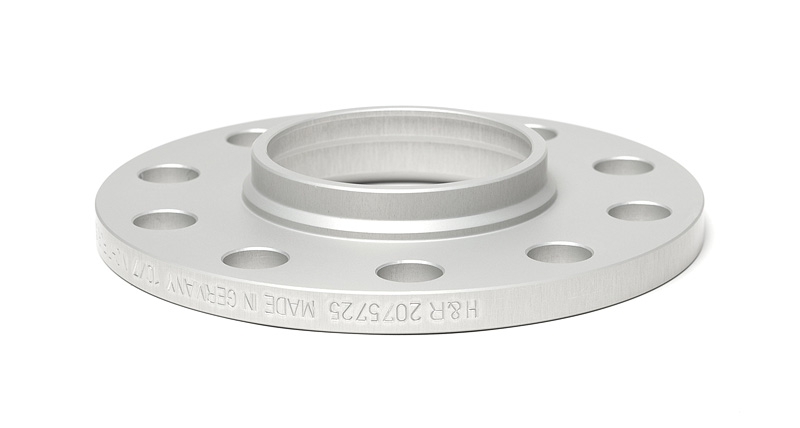

BMW DR / 10 2075725 12.00mm N/A

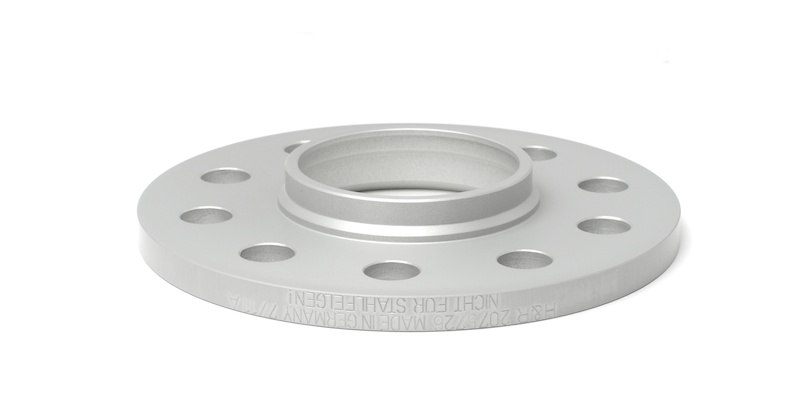

BMW DR / 10 2075726 12.00mm N/A

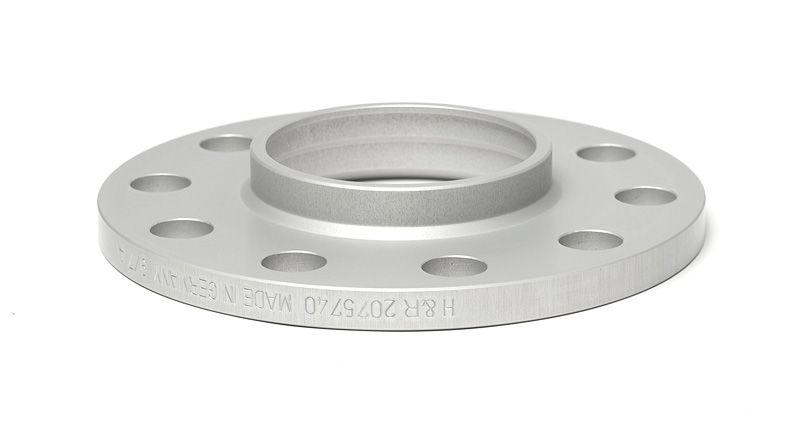

BMW DR / 10 2075740 11.00mm N/A
BMW DR / 11 2255664 11.00mm N/A
BMW DR / 12 2455664 11.00mm N/A

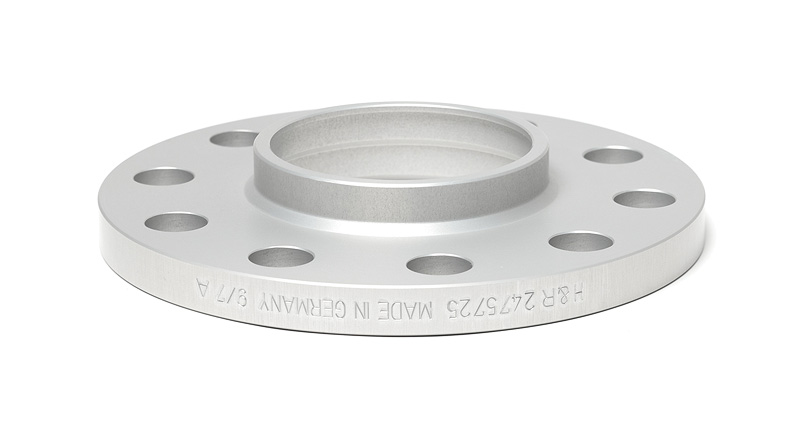

BMW DR / 12 2475725 12.00mm N/A
BMW DR / 12 2475726 12.00mm N/A

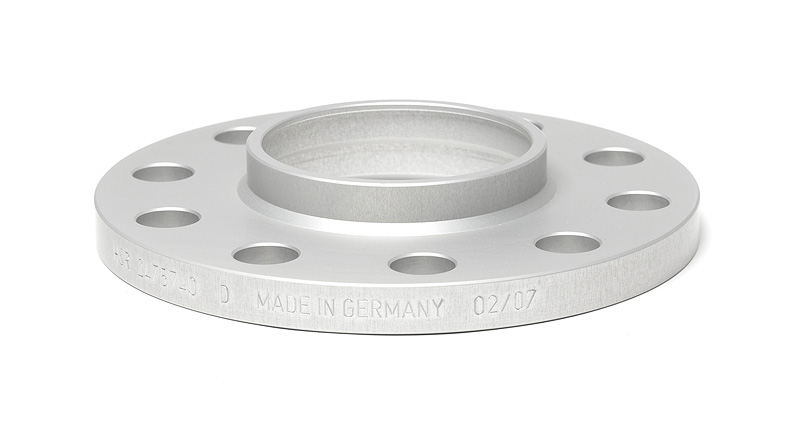

BMW DR / 12 2475740 12.00mm N/A
BMW DR / 13 2655664 12.50mm N/A
BMW DR / 15 3055664 12.50mm N/A

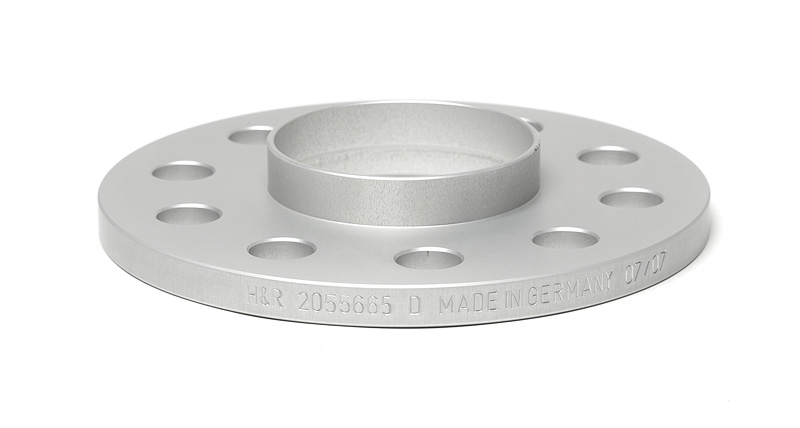

CHRYSLER / DODGE DR / 10 2055665 9.00mm N/A

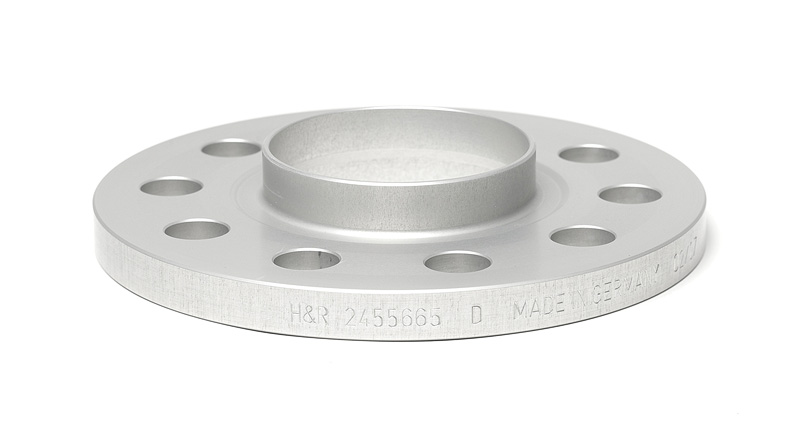

CHRYSLER / DODGE DR / 12 2455665 10.00mm N/A

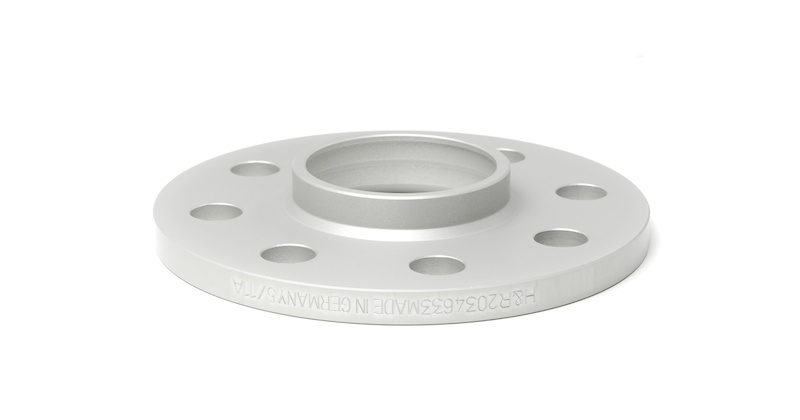

FORD DRS / 10 20346331 11.00mm N/A

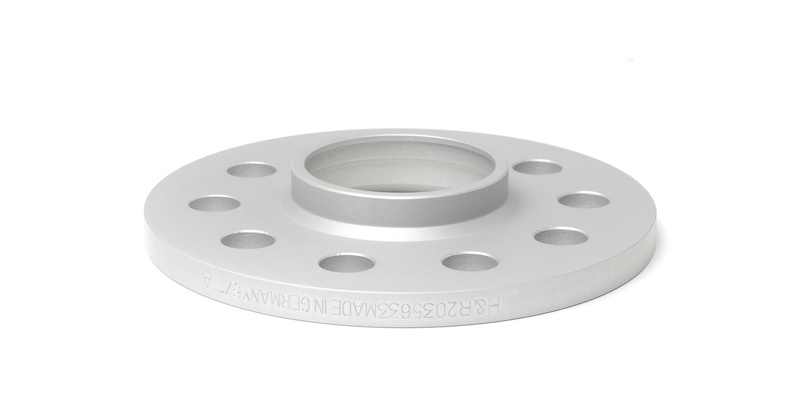

FORD DRS / 10 20356331 11.00mm N/A
FORD DRS / 12 2465635 11.00mm N/A

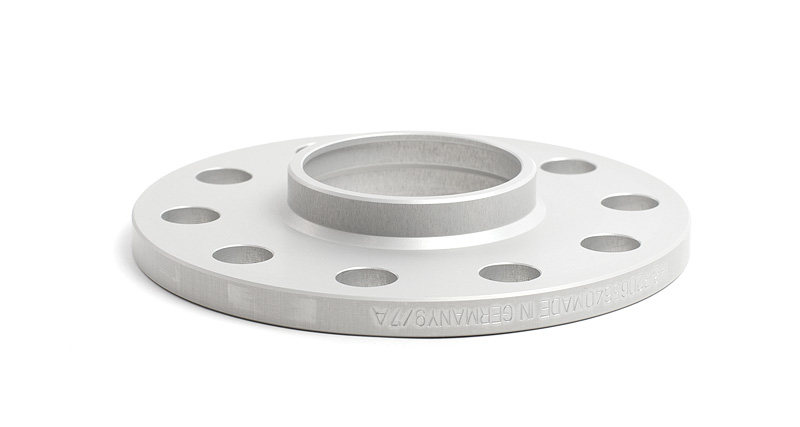

HONDA DRS / 10 2065640 11.00mm N/A

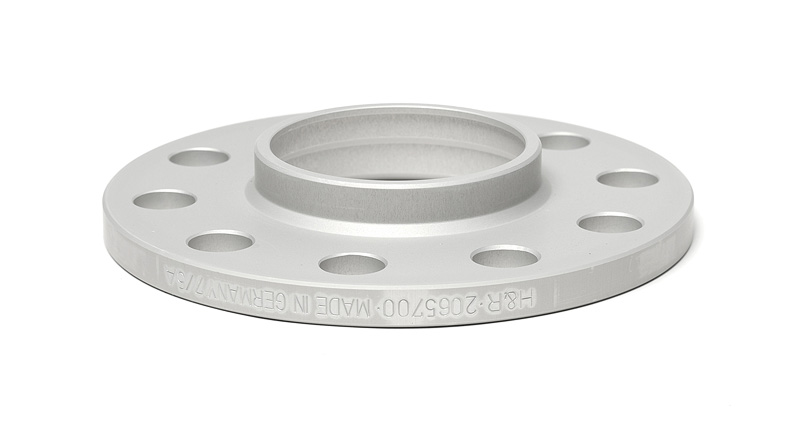

HONDA DRS / 10 2065700 11.00mm N/A

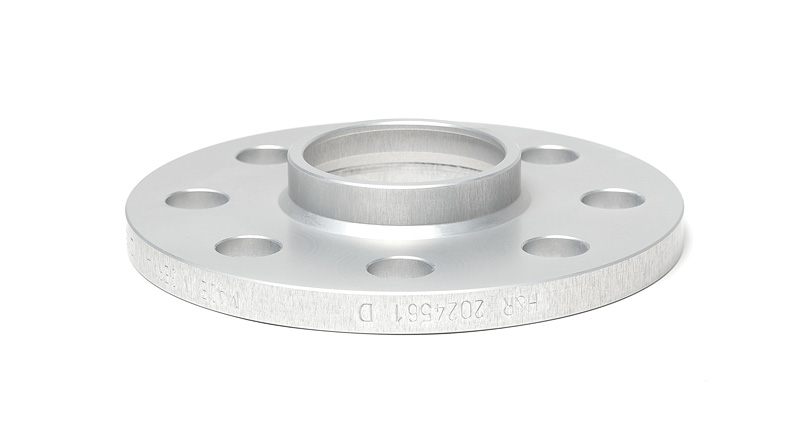

HONDA / ACURA DRS / 10 20245616 10.00mm N/A

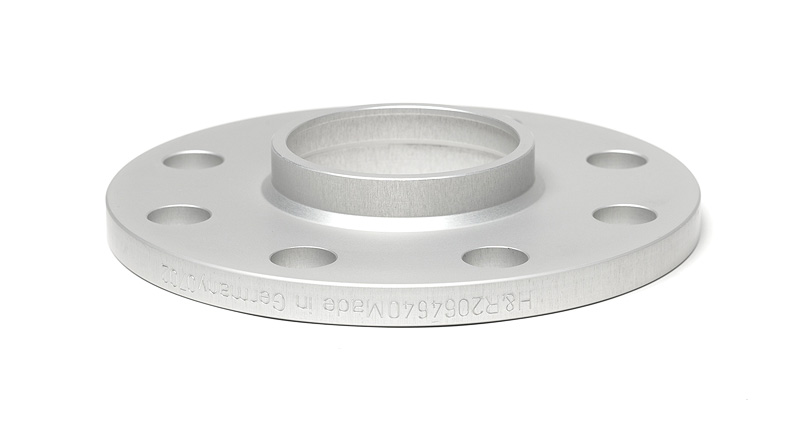

HONDA / ACURA DRS / 10 2064640 11.00mm N/A

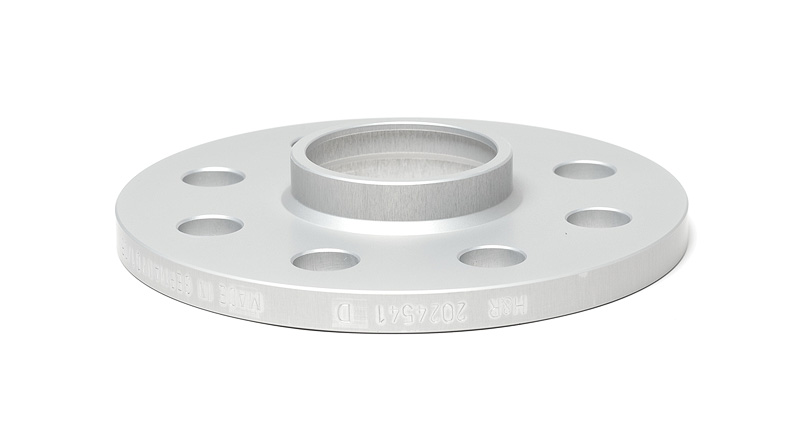

MAZDA DRS / 10 20245410 11.00mm N/A
MAZDA DRS / 10 202454101 11.00mm N/A
MERCEDES-BENZ DR / 10 2055665 9.00mm N/A
MERCEDES-BENZ DR / 10 20556659 N/A N/A
MERCEDES-BENZ DR / 12 2455665 10.00mm N/A

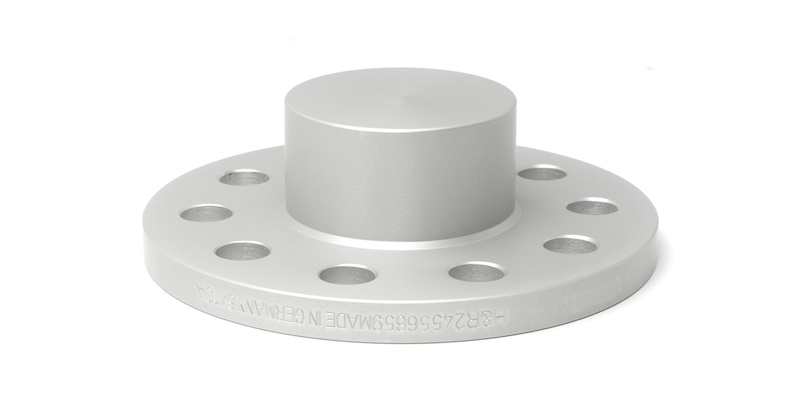

MERCEDES-BENZ DR / 12 24556659 N/A N/A
MINI DR / 10 2075725 12.00mm N/A
MINI DR / 12 2475725 12.00mm N/A

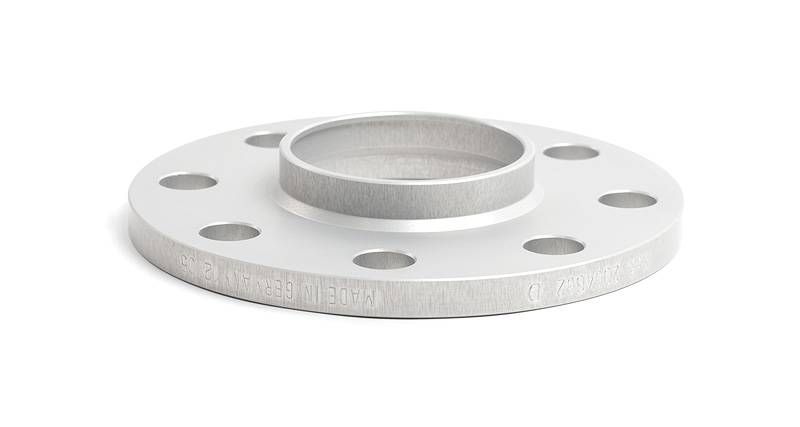

NISSAN DRS / 10 2064662 10.00mm N/A

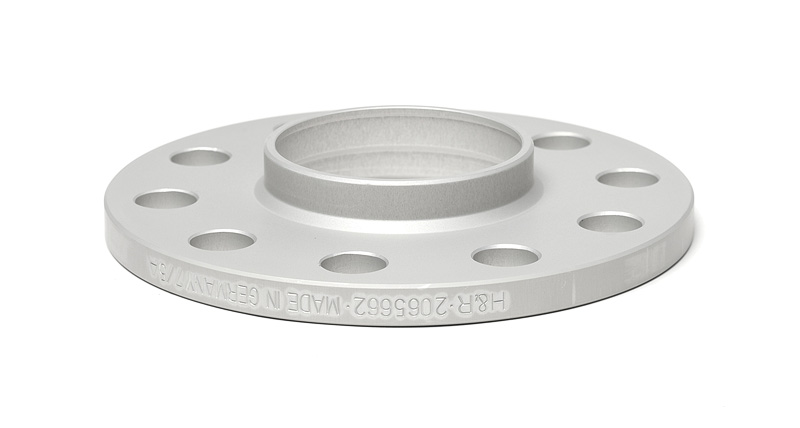

NISSAN DRS / 10 2065662 10.00mm N/A

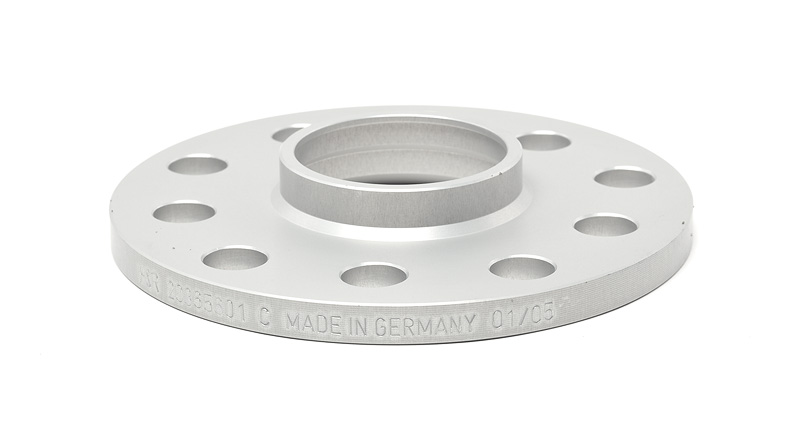

SUZUKI DR / 10 20365601 11.00mm N/A

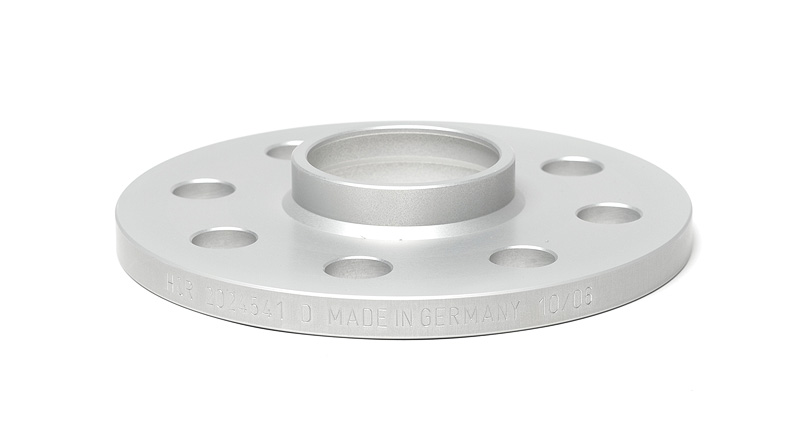

TOYOTA DRS / 10 20245414 11.00mm N/A

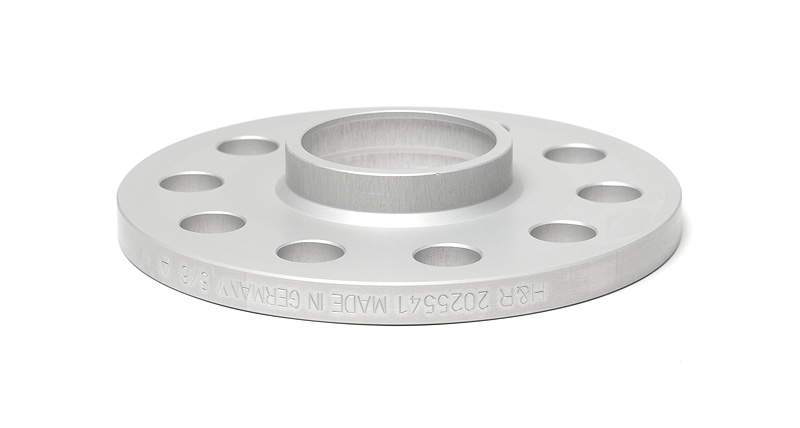

TOYOTA DRS / 10 2025541 10.00mm N/A
TOYOTA DRS / 10 20656014 11.00mm N/A

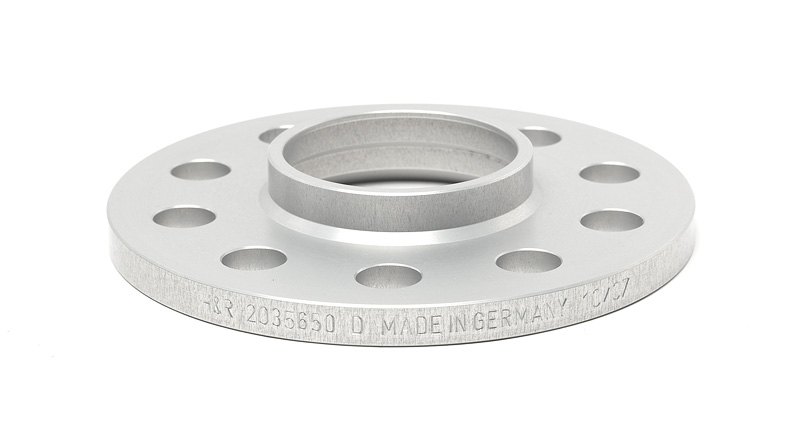

VOLVO DR / 10 2035650 11.00mm N/A

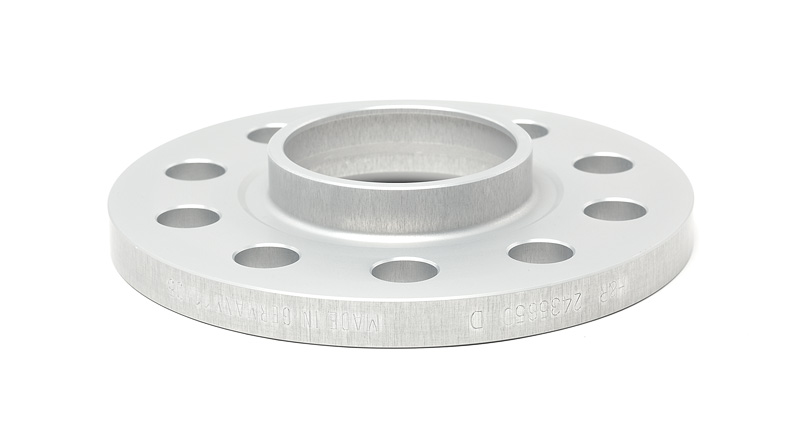

VOLVO DR / 12 2435650 10.00mm N/A
